TECHNICAL DATA
Nominal Voltage: 300V/500V
Temperature Range:-100℃～+250℃
Colours: White-Blue-Red-Black-Brown-Yellow-Green- Transparent -Yellow/Green
O.D.Tolerance: ±0.1mm
Testing Voltage: 3000V

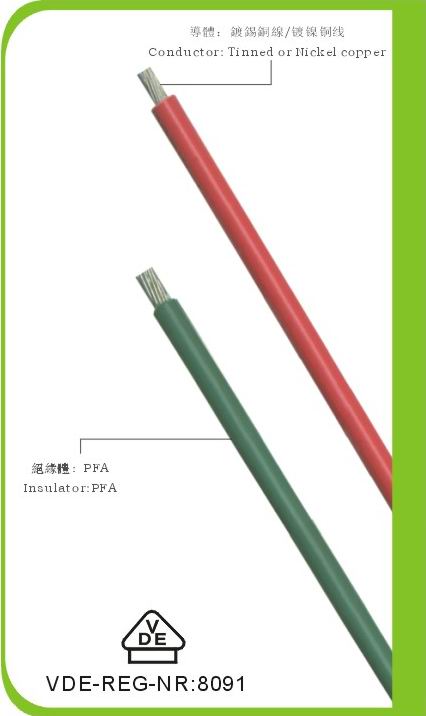

Conductor: Tinned or Nickel copper
Insulator:PFA
Jacket:PFA
|
(Conductor)
|
(In Insulator)
|
(Out sulator)
|
(Elictrical Characteristic)
|
(Packing)
|
||||
|
Mm2
|
（Comps.n.x）/
φmm
|
（Diameter）/
φmm
|
(Insulation Thick)
/mm
|
（In diameter）φmm
|
(Out diamter)mm
|
（ Over diameter）/
φmm
|
（Realst,maxCuc,c 20℃）/Ohm/km
|
Mt/coils
|
|
0.15
|
7×0.16
|
0.46
|
0.20
|
0.86
|
0.25
|
1.36
|
150
|
610
|
|
0.2
|
19×0.12
|
0.60
|
0.20
|
1.00
|
0.25
|
1.50
|
94.2
|
610
|
|
7×0.20
|
0.61
|
0.20
|
1.01
|
0.25
|
1.51
|
94.2
|
610
|
|
|
0.30
|
19×0.16
|
0.76
|
0.20
|
1.16
|
0.25
|
1.66
|
59.4
|
305
|
|
0.50
|
19×0.19
|
0.93
|
0.20
|
1.40
|
0.25
|
1.85
|
36.7
|
305
|
|
0.75
|
19×0.23
|
1.16
|
0.20
|
1.56
|
0.25
|
2.06
|
23.2
|
305
|
|
1.0
|
19×0.26
|
1.31
|
0.20
|
1.71
|
0.25
|
2.21
|
14.6
|
305
|
|
1.25
|
19×0.29
|
1.46
|
0.30
|
2.06
|
0.30
|
2.66
|
8.96
|
305
|
|
1.5
|
19×0.32
|
1.61
|
0.30
|
2.21
|
0.30
|
2.81
|
5.64
|
200
|
|
2.0
|
19×0.37
|
1.86
|
0.30
|
2.46
|
0.30
|
3.06
|
3.546
|
200
|
|
2.50
|
19×0.41
|
2.06
|
0.30
|
2.66
|
0.30
|
3.26
|
2.230
|
200
|
|
3.0
|
19×0.45
|
2.27
|
0.30
|
2.87
|
0.30
|
3.47
|
1.403
|
200
|
|
4.0
|
37×0.37
|
2.60
|
0.30
|
3.20
|
0.30
|
3.80
|
0.882
|
200
|
|
5.5
|
37×0.42
|
2.95
|
0.30
|
3.55
|
0.30
|
4.15
|
0.555
|
200
|
