TECHNICAL DATA
Nominal Voltage: 300V/500V
Temperature Range:-100℃～+180℃
Colours: White-Blue-Red-Black-Brown-Yellow-Green- Transparent -Yellow/Green
O.D.Tolerance: ±0.1mm
Testing Voltage: 2000V
Conductor:Tinned copper
Insulator:FEP
Jacket:PVC
TECHNICAL DATA
Nominal Voltage: 300V/500V
Temperature Range:-100℃～+180℃
Colours: White-Blue-Red-Black-Brown-Yellow-Green- Transparent -Yellow/Green
O.D.Tolerance: ±0.1mm
Testing Voltage: 2000V
Conductor:Tinned copper
Insulator:FEP
Jacket:PVC
|

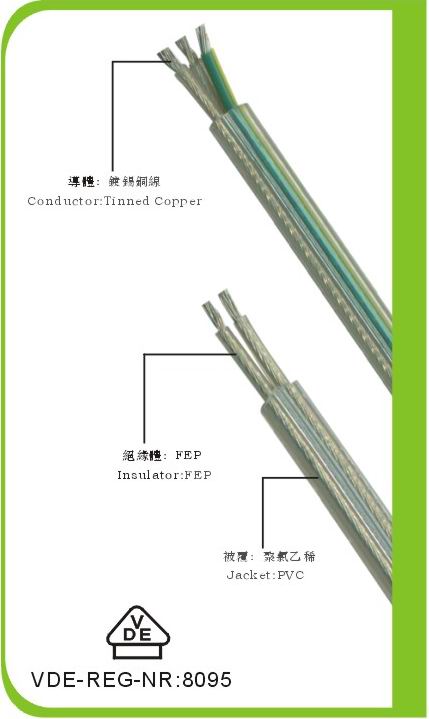

(Conductor)
|
(Insulator)
|
(Jacket)
|
(Elictrical Characteristi)
|
(Packing)
|
||||
|
Mm2
|
（Comps.n.x）
/φmm
|
（Diameter）/
φmm
|
(Insulation Thick) / mm
|
(Insulation diameter)/ φmm
|
(Jacke Thick)/mm
|
（ Over diameter）/φmm
|
（Realst,maxCuc,c 20℃）/Ohm/km
|
Mt/coils
|
|
0.5×2C
|
19×0.19
|
0.96
|
0.25
|
1.48
|
0.8
|
4.50or2.2×3.6
|
36.7
|
200
|
|
0.75×2C
|
19×0.23
|
1.16
|
0.25
|
1.66
|
0.8
|
4.50or2.4×4.0
|
23.2
|
200
|
|
0.75×3C
|
19×0.23
|
1.16
|
0.25
|
1.66
|
0.8
|
5.00
|
23.2
|
200
|
|
0.75×4C
|
19×0.23
|
1.16
|
0.25
|
1.66
|
0.8
|
5.50
|
23.2
|
200
|
|
0.75×5C
|
19×0.23
|
1.16
|
0.25
|
1.66
|
0.8
|
6.00
|
23.2
|
100
|
|
1.0×2C
|
19×0.26
|
1.31
|
0.25
|
1.81
|
0.8
|
5.00or2.6×4.4
|
14.6
|
100
|
|
1.0×3C
|
19×0.26
|
1.31
|
0.25
|
1.81
|
0.8
|
5.50
|
14.6
|
100
|
|
1.0×4C
|
19×0.26
|
1.31
|
0.25
|
1.81
|
0.8
|
6.00
|
14.6
|
100
|
|
1.0×5C
|
19×0.26
|
1.31
|
0.25
|
1.81
|
0.8
|
6.50
|
14.6
|
100
|
|
1.25×2C
|
19×0.29
|
1.46
|
0.30
|
2.06
|
0.8
|
5.50or3.0×5.0
|
8.96
|
100
|
|
1.25×3C
|
19×0.29
|
1.46
|
0.30
|
2.06
|
0.8
|
6.00
|
8.96
|
100
|
|
1.25×4C
|
19×0.29
|
1.46
|
0.30
|
2.06
|
0.8
|
6.50
|
8.96
|
100
|
|
1.25×5C
|
19×0.29
|
1.46
|
0.30
|
2.06
|
0.8
|
7.00
|
8.96
|
100
|
|
1.5×2C
|
19×0.32
|
1.61
|
0.30
|
2.21
|
0.8
|
6.00or3.2×5.2
|
5.64
|
100
|
|
1.5×3C
|
19×0.32
|
1.61
|
0.30
|
2.21
|
0.8
|
6.50
|
5.64
|
100
|
|
1.5×4C
|
19×0.32
|
1.61
|
0.30
|
2.21
|
0.8
|
7.00
|
5.64
|
100
|
|
1.5×5C
|
19×0.32
|
1.61
|
0.30
|
2.21
|
0.8
|
7.50
|
5.64
|
100
|
|
2.0×2C
|
19×0.37
|
1.86
|
0.30
|
2.46
|
0.80
|
6.5or3.5×6.0
|
3.546
|
100
|
|
2.0×3C
|
19×0.37
|
1.86
|
0.30
|
2.46
|
0.80
|
7.00
|
3.546
|
100
|
|
2.0×4C
|
19×0.37
|
1.86
|
0.30
|
2.46
|
0.80
|
7.50
|
3.546
|
100
|
|
2.0×5C
|
19×0.37
|
1.86
|
0.30
|
2.46
|
0.80
|
8.00
|
3.546
|
100
|
|
2.5×2C
|
19×0.41
|
2.06
|
0.30
|
2.66
|
0.80
|
7.0or3.8×6.5
|
3.546
|
100
|
|
2.5×3C
|
19×0.41
|
2.06
|
0.30
|
2.66
|
0.80
|
7.50
|
3.546
|
100
|
|
2.5×4C
|
19×0.41
|
2.06
|
0.30
|
2.66
|
0.80
|
8.00
|
3.546
|
100
|
|
2.5×5C
|
19×0.41
|
2.06
|
0.30
|
2.66
|
0.80
|
9.00
|
3.546
|
100
|
|
3.0×2C
|
19×0.45
|
2.27
|
0.30
|
2.87
|
0.80
|
7.5or4.0×7.0
|
1.403
|
100
|
|
4.0×2C
|
37×0.37
|
2.60
|
0.30
|
3.20
|
0.80
|
8.0or4.2×7.6
|
0.8820
|
100
|
|
4.0×3C
|
37×0.37
|
2.60
|
0.30
|
3.20
|
0.80
|
8.5
|
0.8820
|
100
|
|
4.0×4C
|
37×0.37
|
2.60
|
0.30
|
3.20
|
0.80
|
9.5
|
0.8820
|
100
|
|
4.0×5C
|
37×0.37
|
2.60
|
0.30
|
3.20
|
0.80
|
10.0
|
0.8820
|
100
|
