TECHNICAL DATA
Nominal Voltage: 300V/500V
Temperature Range:-40℃～+180℃
Colours: White-Blue-Red-Black-Brown-Yellow-Green- Transparent -Yellow/Green
O.D.Tolerance: ±0.1mm
Testing Voltage: 3000V

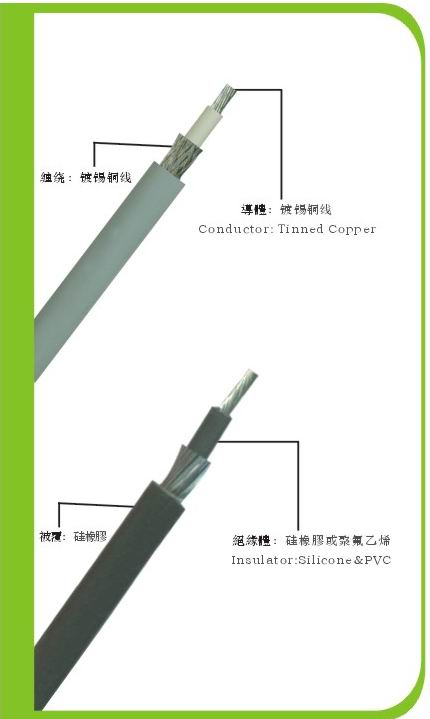

Conductor: Tinned copper
Insulator:Silicone
TECHNICAL DATA
Nominal Voltage: 300V/500V
Temperature Range:-40℃～+180℃
Colours: White-Blue-Red-Black-Brown-Yellow-Green- Transparent -Yellow/Green
O.D.Tolerance: ±0.1mm
Testing Voltage: 3000V
Conductor: Tinned copper
Insulator:Silicone
|
(Conductor)
|
(Insulator)
|
(Packing)
|
||||||
|
AWG
|
Comps.n.
/φmm
|
Diameter
/φmm
|
Insulator Thick
/mm
|
Diameter
mm
|
Pleach Shield
/mm
|
Jacket Thick
/mm
|
Over diameter
/φmm
|
Mt/coils
|
|
24
|
40×0.08
|
0.58
|
0.55
|
1.68
|
0.08×40
|
0.78
|
3.44
|
305
|
|
22
|
60×0.08
|
0.72
|
0.55
|
1.82
|
0.08×60
|
0.78
|
3.58
|
305
|
|
21
|
49×0.10
|
0.81
|
0.55
|
1.91
|
0.10×56
|
0.78
|
3.78
|
305
|
|
35×0.12
|
0.82
|
0.55
|
1.92
|
0.10×56
|
0.78
|
3.79
|
305
|
|
|
20
|
100×0.08
|
0.90
|
0.55
|
2.00
|
0.08×100
|
0.80
|
3.88
|
200
|
|
18
|
105×0.10
|
1.18
|
0.55
|
2.28
|
0.10×105
|
0.80
|
4.08
|
200
|
|
16
|
168×0.10
|
1.50
|
0.55
|
2.60
|
0.10×168
|
0.80
|
4.40
|
100
|
