TECHNICAL DATA
Nominal Voltage: 300V/500V
Temperature Range:-60℃～+180℃
Colours: White-Blue-Red-Black-Brown-Yellow-Green- Transparent -Yellow/Green
O.D.Tolerance: ±0.1mm
Testing Voltage: 2500V

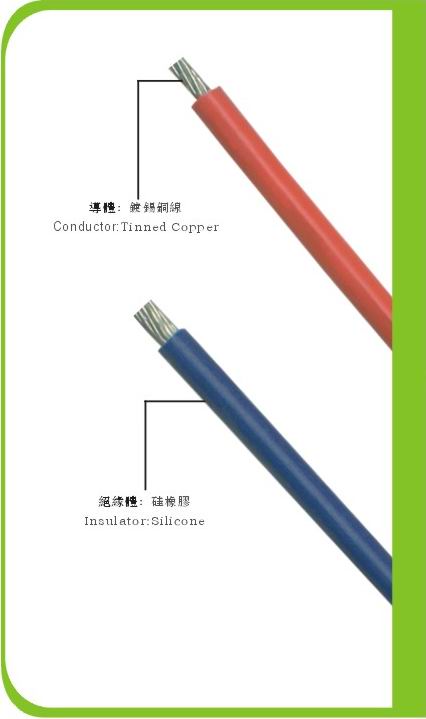

Conductor: Tinned copper
Insulator:Silicone
TECHNICAL DATA
Nominal Voltage: 300V/500V
Temperature Range:-60℃～+180℃
Colours: White-Blue-Red-Black-Brown-Yellow-Green- Transparent -Yellow/Green
O.D.Tolerance: ±0.1mm
Testing Voltage: 2500V
Conductor: Tinned copper
Insulator:Silicone
|
(Conductor)
|
(Insulator)
|
(Elictrical Characteristic)
|
(Packing)
|
|||
|
section
mm2
|
（Comps.n.x）/
φmm
|
（Diameter）/
φmm
|
(Insulation Thick)
/mm
|
（Over diameter）/
φmm
|
（Realst,maxCuc,c 20℃）/Ohm/km
|
Mt/coils
|
|
0.50
|
19×0.185
|
0.92
|
0.60
|
2.12
|
35.91
|
400
|
|
0.75
|
19×0.225
|
1.13
|
0.60
|
2.33
|
23.93
|
400
|
|
1.0
|
19×0.260
|
1.31
|
0.60
|
2.51
|
17.89
|
400
|
|
1.5
|
19×0.317
|
1.58
|
0.70
|
2.98
|
11.99
|
200
|
|
2.50
|
19×0.410
|
2.06
|
0.80
|
3.66
|
7.17
|
100
|
