TECHNICAL DATA
Nominal Voltage: 300V/500V
Temperature Range:-60℃～+180℃
Colours: White-Blue-Red-Black-Brown-Yellow-Green- Transparent -Yellow/Green
O.D.Tolerance: ±0.1mm
Testing Voltage: 2500V
Conductor: Tinned copper
Insulator:Silicone
Pleach :silicone fiberglass
|

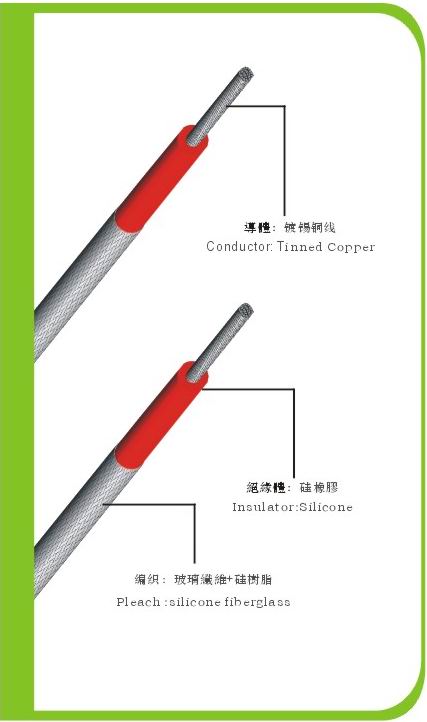

Conductor
|
Insulator
|
Elictrical Characteristic
|
Packing
|
||||
|
section
Mm2
|
（Comps.n.x）
/φmm
|
（Diameter）
/φmm
|
(Insulation Thick)
/mm
|
Pleach
Thick
/mm
|
（Over diameter）
/φmm
|
（Realst,maxCuc,c
20℃）Ohm/km
|
Mt/coils
|
|
0.12
|
1×0.40
|
0.40
|
0.50
|
0.15
|
1.70
|
142.79
|
500
|
|
0.20
|
1×0.50
|
0.50
|
0.50
|
0.15
|
1.80
|
91.36
|
500
|
|
0.30
|
1×0.60
|
0.60
|
0.50
|
0.15
|
1.90
|
58.94
|
500
|
|
0.50
|
1×0.80
|
0.80
|
0.50
|
0.15
|
2.10
|
33.90
|
400
|
|
0.75
|
1×1.00
|
1.00
|
0.50
|
0.15
|
2.30
|
21.40
|
400
|
|
1.25
|
1×1.20
|
1.20
|
0.50
|
0.15
|
2.70
|
13.50
|
200
|
|
0.14
|
7×0.16
|
0.49
|
0.50
|
0.15
|
1.79
|
127.5
|
500
|
|
0.25
|
8×0.20
|
0.65
|
0.50
|
0.15
|
1.95
|
76.46
|
500
|
|
0.50
|
16×0.20
|
0.92
|
0.50
|
0.15
|
2.22
|
35.91
|
500
|
|
0.75
|
24×0.20
|
1.13
|
0.50
|
0.15
|
2.43
|
23.93
|
500
|
|
1.25
|
50×0.18
|
1.47
|
0.50
|
0.15
|
2.77
|
17.89
|
400
|
|
2.00
|
37×0.26
|
1.83
|
0.65
|
0.15
|
3.43
|
14.35
|
200
|
|
2.50
|
47×0.26
|
2.06
|
0.70
|
0.15
|
3.76
|
11.99
|
200
|
|
3.50
|
45×0.32
|
2.48
|
0.90
|
0.15
|
4.58
|
8.96
|
100
|
|
4.00
|
50×0.32
|
2.61
|
0.90
|
0.15
|
4.71
|
7.17
|
100
|
|
5.50
|
35×0.45
|
3.08
|
0.90
|
0.15
|
5.18
|
5.13
|
100
|
|
1.00
|
32×0.20
|
1.31
|
0.50
|
0.15
|
2.61
|
4.48
|
200
|
|
1.50
|
30×0.25
|
1.58
|
0.65
|
0.15
|
3.18
|
3.26
|
200
|
