TECHNICAL DATA
Nominal Voltage: 300V/500V
Temperature Range:-60℃～+180℃
Colours: White-Blue-Red-Black-Brown-Yellow-Green- Transparent -Yellow/Green
O.D.Tolerance: ±0.15mm
Testing Voltage: 2500V

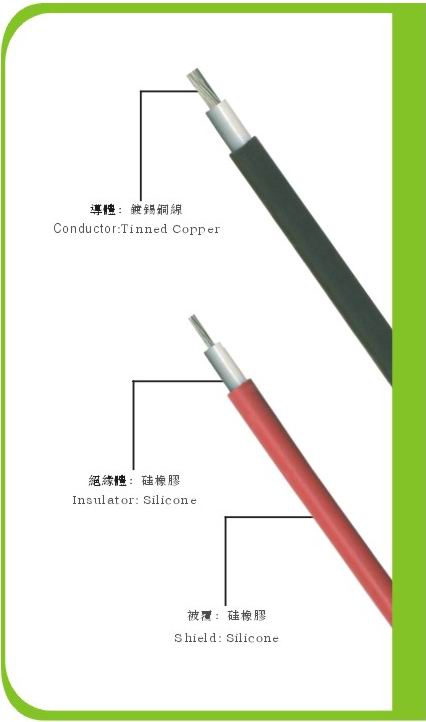

Conductor: Tinned copper
Insulator:Silicone
Shield: Silicone
|
Conductor
|
Insulator
|
Electrical
Characteristic
|
Packing
|
|
||||||
|
section
/mm2
|
Compos.N.x
/φmm
|
DIM
/φm m
|
Insulator Thick
/mm
|
Diameter
/φmm
|
Over DIM.
/mm
|
Over DIM.
/φmm
|
Realst,maxCuc,c 20℃Ohm/km
|
Mt/coils
|
||
|
0.50
|
16×0.20
|
0.30
|
0.60
|
2.52
|
0.60
|
3.32
|
35.91
|
100
|
||
|
0.75
|
24×0.20
|
0.37
|
0.60
|
2.73
|
0.60
|
3.53
|
23.93
|
100
|
||
|
1.00
|
32×0.20
|
0.49
|
0.60
|
2.91
|
0.60
|
4.71
|
17.89
|
100
|
||
|
1.50
|
30×0.25
|
0.61
|
0.70
|
3.38
|
0.70
|
4.38
|
11.99
|
100
|
||
|
2.50
|
47×0.26
|
0.76
|
0.80
|
4.06
|
0.80
|
5.26
|
7.17
|
100
|
||
