TECHNICAL DATA
Nominal Voltage: 300V
Temperature Range:-60℃～+200℃
Colours: White-Blue-Red-Black-Brown-Yellow-Green- Transparent -Yellow/Green
O.D.Tolerance: ±0.20mm
Testing Voltage: 1500V

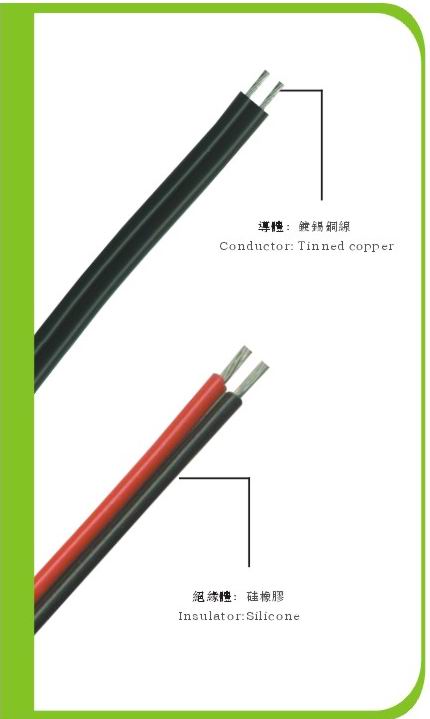

Conductor: Tinned copper
Insulator:Silicone
TECHNICAL DATA
Nominal Voltage: 300V
Temperature Range:-60℃～+200℃
Colours: White-Blue-Red-Black-Brown-Yellow-Green- Transparent -Yellow/Green
O.D.Tolerance: ±0.20mm
Testing Voltage: 1500V
Conductor: Tinned copper
Insulator:Silicone
|
（Conductor）
|
（Insulator）
|
Electrical
Characteristic
|
Packing
|
|||
|
Section
mm2
|
(Comps.n.x)
/φmm
|
(Diameter)/
φmm
|
(Insulator Thick)
/mm
|
(Over diameter)/
φmm
|
(Realst,maxCuc,c 20℃)/Ohm/km
|
Mt/coils
|
|
0.15×2C
|
7×0.15
|
0.46
|
0.60
|
1.66×3.42
|
127.0
|
400
|
|
0.20×2C
|
7×0.20
|
0.61
|
0.60
|
1.81×3.72
|
95.58
|
400
|
|
0.30×2C
|
7×0.25
|
0.76
|
0.60
|
1.96×4.02
|
59.40
|
400
|
|
0.50×2C
|
16×0.20
|
0.92
|
0.60
|
2.12×4.34
|
35.91
|
400
|
|
0.75×2C
|
24×0.20
|
1.13
|
0.60
|
2.33×4.76
|
23.93
|
400
|
|
1.00×2C
|
32×0.20
|
1.30
|
0.60
|
2.50×5.10
|
17.89
|
400
|
|
0.50×3C
|
16×0.20
|
0.96
|
0.60
|
2.10×6.50
|
35.91
|
400
|
|
0.75×3C
|
24×0.20
|
1.13
|
0.60
|
2.33×7.19
|
23.93
|
400
|
|
1.00×3C
|
32×0.20
|
1.30
|
0.60
|
2.50×7.70
|
17.89
|
400
|
