TECHNICAL DATA
Nominal Voltage: 450V/750V
Temperature Range::-60℃～+180℃
Colours: White-Blue-Red-Black-Brown- Yellow-Green- Transparent -Yellow/Green
O.D.Tolerance: ±0.1mm
Testing Voltage: 3000V

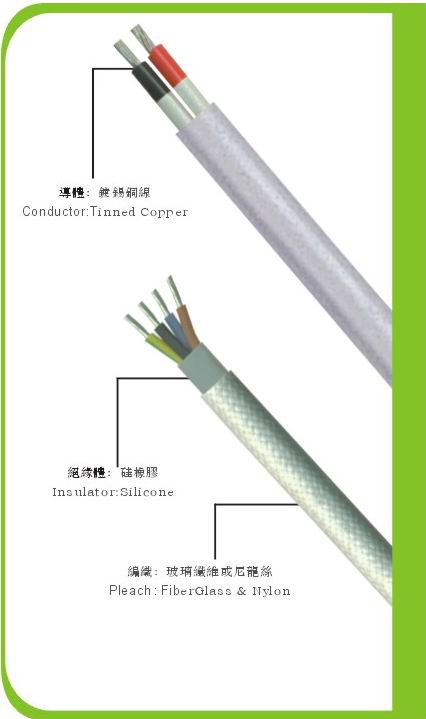

Conductor: Tinned Copper
Insulator:Silicone
Jacket:Silicone
Pleach : FiberGlass & Nylon
|
(Conductor) |
(Insulator) |
(Elictrical
Characteristic) |
(Packing) | ||||
|
Section
/mm2 |
(Comps.n.x)
/φmm |
(Insulation
Thick)
/mm |
(Jacket Thick)
mm |
(Jacket Thick)
mm |
(Over diameter)
φmm |
(Realst,maxCuc,c
20℃)Ohm/km |
Mt/coils |
|
2×0.50 |
16×0.20 |
0.60 |
2.10 |
1.20 |
5.80 |
35.18 |
100 |
|
2×0.75 |
24×0.20 |
0.60 |
2.40 |
1.30 |
6.50 |
23.48 |
100 |
|
2×1.00 |
32×0.20 |
0.60 |
2.50 |
1.30 |
6.60 |
17.58 |
100 |
|
2×1.50 |
30×0.25 |
0.70 |
3.00 |
1.50 |
7.90 |
11.66 |
50 |
|
2×2.00 |
37×0.26 |
0.70 |
3.30 |
2.00 |
9.40 |
8.79 |
50 |
|
3×0.50 |
16×0.20 |
0.60 |
2.10 |
1.50 |
7.20 |
35.18 |
50 |
|
3×0.75 |
24×0.20 |
0.60 |
2.40 |
1.50 |
7.80 |
23.48 |
50 |
|
3×1.00 |
32×0.20 |
0.60 |
2.50 |
1.50 |
8.00 |
17.58 |
50 |
|
3×1.50 |
30×0.25 |
0.70 |
3.00 |
1.80 |
9.60 |
11.66 |
50 |
|
3×2.00 |
37×0.26 |
0.70 |
3.30 |
2.00 |
10.60 |
8.79 |
50 |
